郑州大学姚明浩等 | 活性氧清除水凝胶促进糖尿病小鼠伤口愈合

本研究论文聚焦活性氧清除水凝胶促进糖尿病小鼠伤口愈合。活性氧 (ROS) 的过量产生和细菌感染是糖尿病足溃疡伤口愈合的棘手障碍。在此，我们设计了一种新方法，利用多功能水凝胶实现自级联的葡萄糖消耗和ROS清除，从而改变糖尿病伤口微环境。本研究采用聚乙烯醇 (PVA)、硼砂 (Borax)、低聚原花青素 (OPC) 和纳米酶 (AuPt@PDA) 一步法制备了PVA/Borax/OPC/AuPt@PDA (PBON) 水凝胶。 PBON水凝胶与近红外治疗相结合，可通过葡萄糖消耗、清除ROS、光热治疗 (光热转换率 81.9%)、可变形性等作用，与糖尿病高运动区复杂多变的微环境相匹配，从而通过血管生成和胶原沉积促进表皮再生，促进糖尿病小鼠髋关节附近伤口的愈合。这种方法为运动区域的糖尿病伤口提供了一种简单、安全、高效的治疗方法。

引用本文（点击最下方阅读原文可下载PDF）

Liu K, Jin R, Yang M, et al., 2025. Reactive oxygen species scavenging hydrogel for wound healing in diabetic mice. Bio-des Manuf 8(5):742–758. https://doi.org/10.1631/bdm.2400375

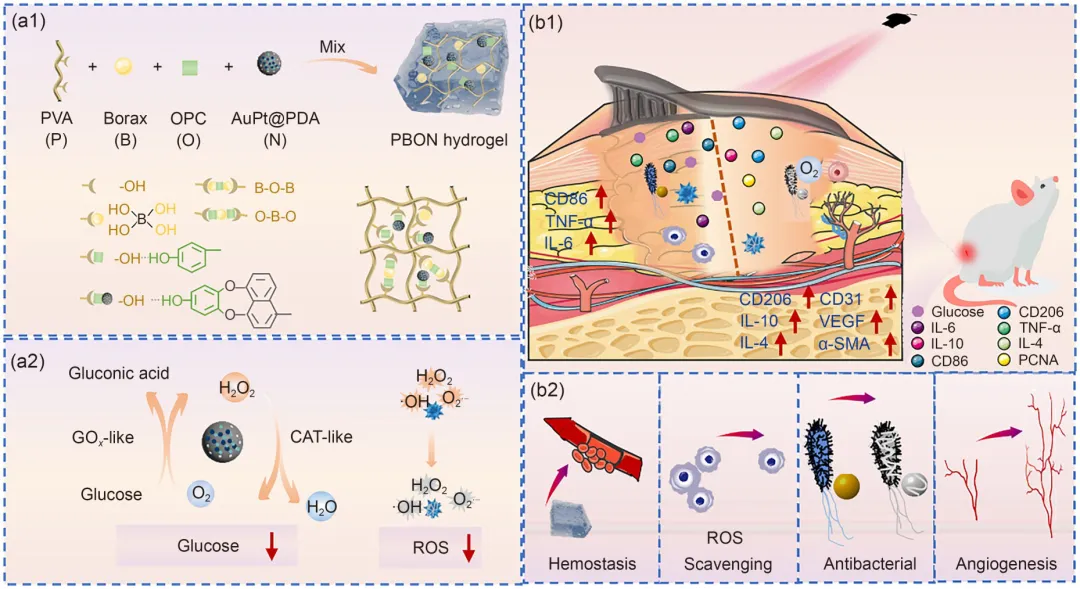

图1 负载AuPt@PDA纳米酶的多功能水凝胶用于促进糖尿病小鼠移动区域的伤口愈合。(a) 多功能PBON水凝胶及PBON的合成示意图，实现自级联式葡萄糖消耗与活性氧清除；(b) 通过简单混合快速制备的PBON水凝胶敷料，通过止血、降糖、抗炎、抑菌及血管再生作用促进糖尿病创面愈合

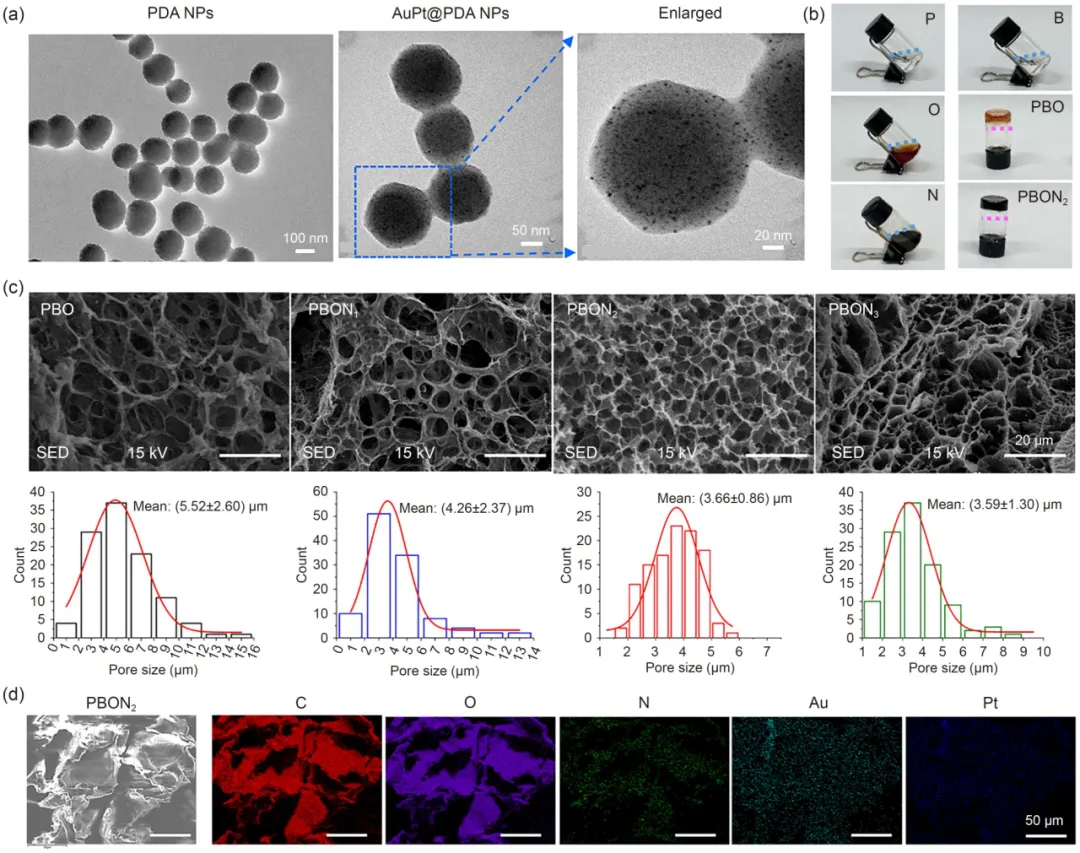

图2 AuPt@PDA纳米颗粒表征及PBON水凝胶的SEM与EDS图像。(a) PDA纳米颗粒与AuPt@PDA纳米颗粒的TEM图像；(b) PBO和PBON₂水凝胶照片（P代表聚乙烯醇，B代表硼砂，O代表OPC，N代表AuPt@PDA纳米颗粒）；(c) 水凝胶SEM图像及孔径分布图；(d) PBON₂水凝胶的EDS谱图

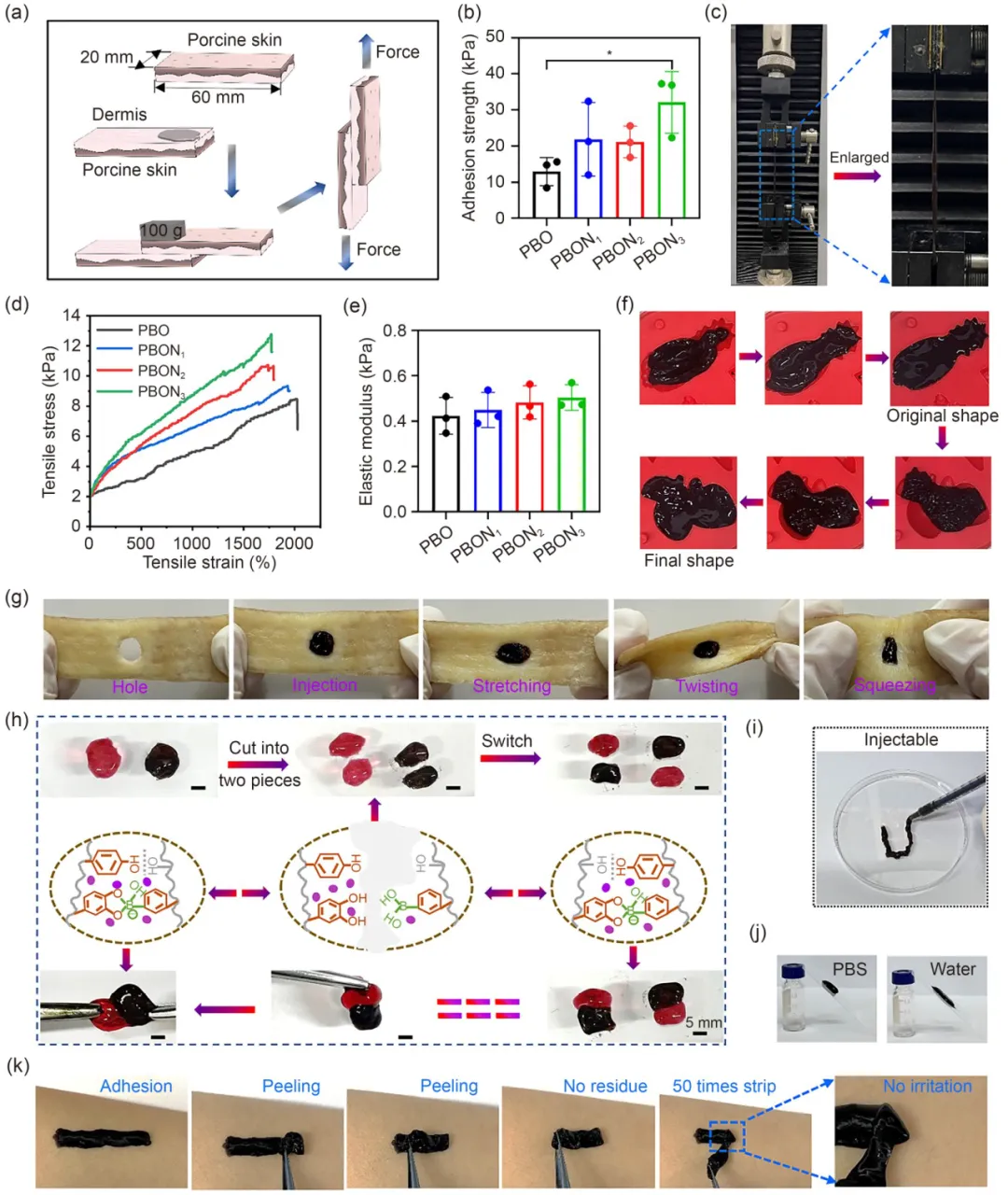

图3 PBON水凝胶的组织粘附、拉伸和形状适应性、自愈合、可注射、可去除以及易剥离性。(a) 搭接剪切测试示意图；(b) 水凝胶对猪皮的粘附强度；(c) PBON₂水凝胶的拉伸性能照片；(d) 不同PBON水凝胶的拉伸应力-应变曲线；(e) 不同PBON水凝胶的弹性模量；(f) PBON₂水凝胶对模具的形状适应性；(g) PBON₂水凝胶对猪皮创面的形状适应性；(h) PBO和PBON₂水凝胶的自愈合性；(i) PBON₂水凝胶的可注射性；(j) PBON₂水凝胶的可去除性；(k) PBON₂水凝胶的易剥离性

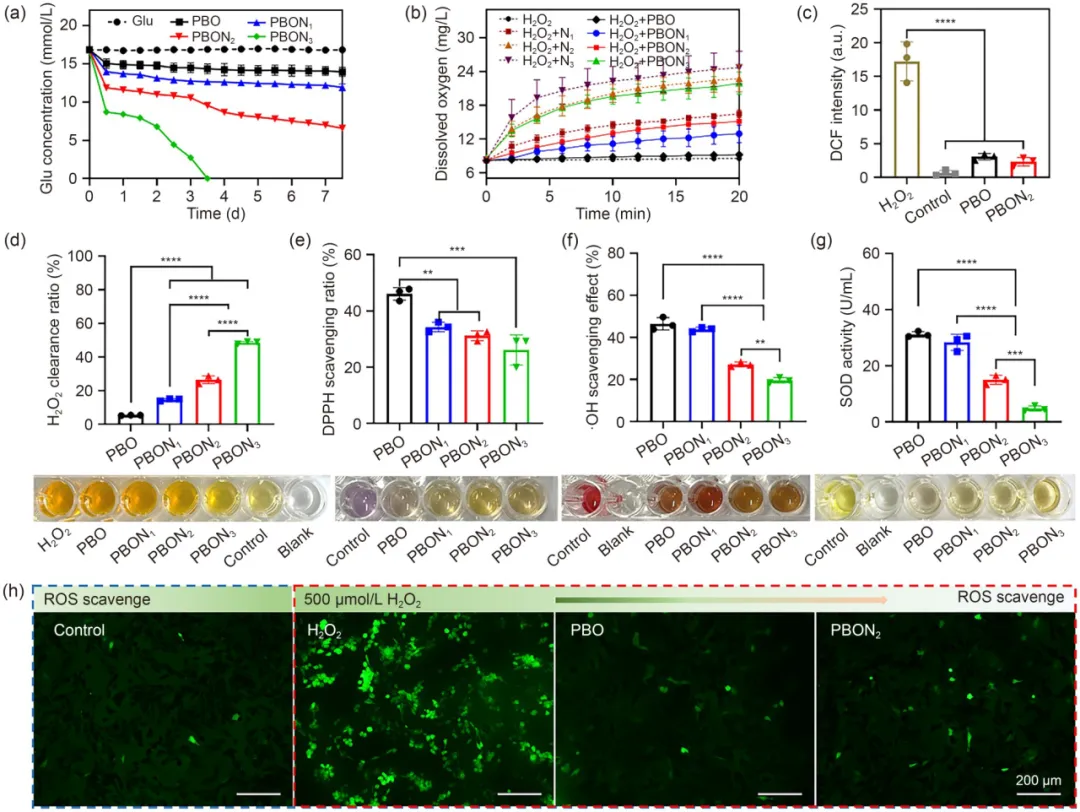

图4 PBON水凝胶的GOx活性、CAT活性及抗氧化能力。 (a) 水凝胶的GOx活性；(b) 水凝胶的产氧量；(c) DCF荧光强度；(d) 水凝胶对H₂O₂的清除率；(e) 水凝胶对DPPH自由基的清除率；(f) 水凝胶对羟基自由基的清除率；(g) 水凝胶的SOD活性；(h) 新鲜培养基处理后的L929细胞的DCF 荧光染色图像（对照组），500 µmol/L H₂O₂处理组（H₂O₂组），500 µmol/L H₂O₂ + 20 µL PBO水凝胶处理组（PBO 组），以及 500 µmol/L H₂O₂ + 20 µL PBON₂水凝胶处理组（PBON₂组）

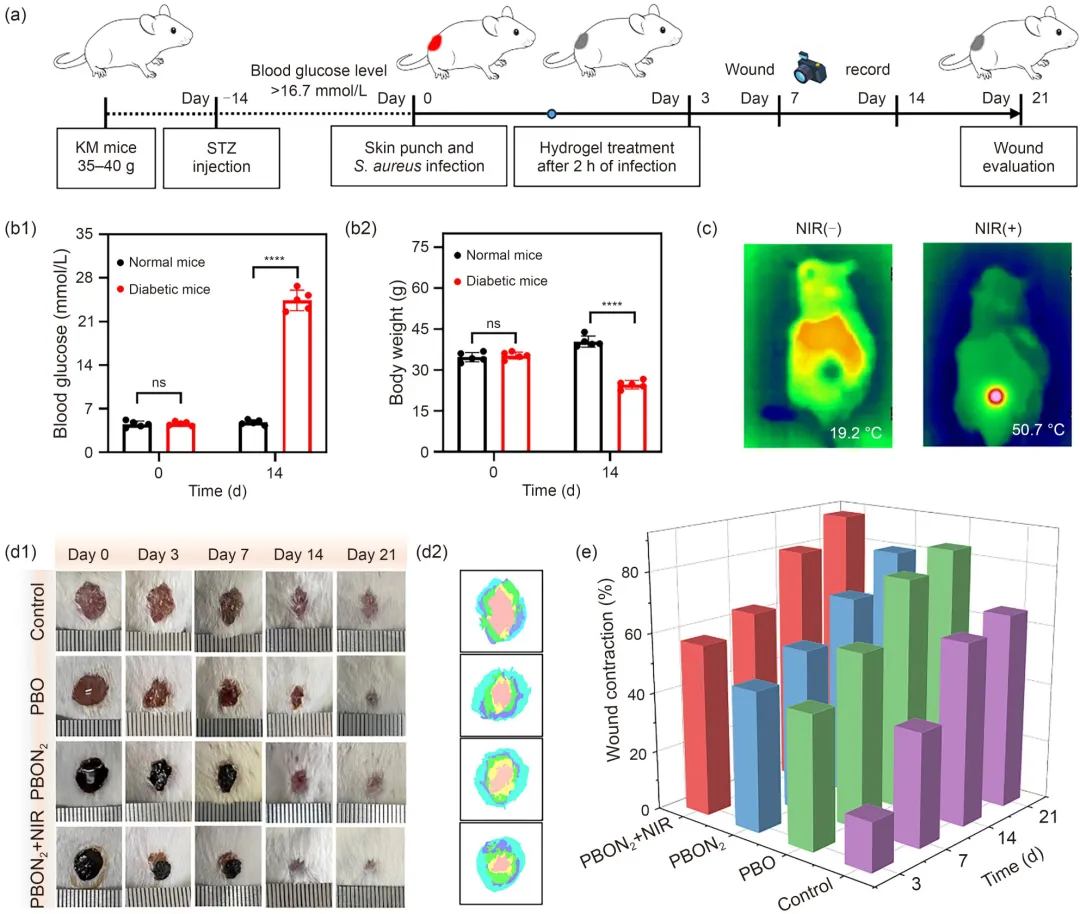

图5 金黄色葡萄球菌感染的糖尿病伤口模型的建立与治疗。(a) STZ诱导糖尿病小鼠模型、感染伤口的建立及水凝胶治疗示意图；(b) 血糖监测与体重变化曲线；(c) PBON₂水凝胶在近红外照射与非照射状态下的小鼠创面热成像图；(d) 伤口愈合过程的第0、3、7、14、21天照片及愈合进程追踪图；(e) 对照组、PBO组、PBON₂组及PBON₂+NIR组伤口愈合率的三维直方图

上下滑动以阅览

1. Zhang Z, Huang CL, Guan SY et al (2024) Hybrid gelatinascorbyl phosphate scaffolds accelerate diabetic wound healing via ROS scavenging, angiogenesis and collagen remodeling. Biomater Adv 158:213779. https://doi.org/10.1016/j.bioadv.2024.213779

2. Zhou ZP, Deng T, Tao MX et al (2023) Snail-inspired AFG/GelMA hydrogel accelerates diabetic wound healing via inflammatory cytokines suppression and macrophage polarization. Biomaterials 299:122141. https://doi.org/10.1016/j.biomaterials.2023.122141

3. Yang ZF, Huang RK, Zheng BN et al (2021) Highly stretchable, adhesive, biocompatible, and antibacterial hydrogel dressings for wound healing. Adv Sci 8(8):2003627. https://doi.org/10.1002/advs.202003627

4. Xin PK, Han SY, Huang J et al (2023) Natural okra-based hydrogel for chronic diabetic wound healing. Chin Chem Lett 34(8):108125. https://doi.org/10.1016/j.cclet.2022.108125

5. Pruett LJ, Jenkins CH, Singh NS et al (2021) Heparin microislands in microporous annealed particle scaffolds for accelerated diabetic wound healing. Adv Funct Mater 31(35):2104337. https://doi.org/10.1002/adfm.202104337

6. Lei LJ, Zhu YL, Qin XY et al (2021) Magnetic biohybrid microspheres for protein purification and chronic wound healing in diabetic mice. Chem Eng J 425:130671. https://doi.org/10.1016/j.cej.2021.130671

7. Pan WH, Qi XL, Xiang YJ et al (2022) Facile formation of injectable quaternized chitosan/tannic acid hydrogels with antibacterial and ROS scavenging capabilities for diabetic wound healing. Int J Biol Macromol 195:190–197. https://doi.org/10.1016/j.ijbiomac.202L12.007

8. Ma HS, Zhou Q, Chang J et al (2019) Grape seed-inspired smart hydrogel scaffolds for melanoma therapy and wound healing. ACS Nano 13(4):4302–1311. https://doi.org/10.1021/acsnano.8b09496

9. Zhu SL, Zhao BJ, Li MC et al (2023) Microenvironment responsive nanocomposite hydrogel with NIR photothermal therapy, vascularization and anti-inflammation for diabetic infected wound healing. Bioact Mater 26:306–320. https://doi.org/10.1016/j.bioactmat.2023.03.005

10. Yu YL, Li PF, Zhu CL et al (2019) Multifunctional and recyclable photothermally responsive cryogels as efficient platforms for wound healing. Adv Funct Mater 29(35):1904402. https://doi.org/10.1002/adfm.201904402

11. Yang Y, Ma L, Cheng C et al (2018) Nonchemotherapic and robust dual-responsive nanoagents with on-demand bacterial trapping, ablation, and release for efficient wound disinfection. Adv Funct Mater 28(21):1705708. https://doi.org/10.1002/adfm.201705708

12. Guo ZY, Zhang ZZ, Zhang N et al (2022) A Mg2+/polydopamine composite hydrogel for the acceleration of infected wound healing. Bioact Mater 15:203–213. https://doi.org/10.1016/j.bioactmat.2021.11.036

13. Maleki A, He J, Bochani S et al (2021) Multifunctional photoactive hydrogels for wound healing acceleration. ACS Nano 15(12): 18895–18930. https://doi.org/10.1021/acsnano.1c08334

14. He LN, Di DH, Chu XH et al (2023) Photothermal antibacterial materials to promote wound healing. J Controlled Release 363: 180–200. https://doi.org/10.1016/j.jconrel.2023.09.035

15. Wen T, Yang AY, Wang T et al (2020) Ultra-small platinum nanoparticles on gold nanorods induced intracellular ROS fluctuation to drive megakaryocytic differentiation of leukemia cells. Biomater Sci 8(22):6204–6211. https://doi.org/10.1039/d0bm01547d

16. Liu W, Zhao NN, Yin Q et al (2023) Injectable hydrogels encapsulating dual-functional Au@Pt core-shell nanoparticles regulate infarcted microenvironments and enhance the therapeutic efficacy of stem cells through antioxidant and electrical integration. ACS Nano 17(3):2053–2066. https://doi.org/10.1021/acsnano.2c07436

17. Zhang B, Lv YJ, Yu CG et al (2022) Au-Pt nanozyme-based multifunctional hydrogel dressing for diabetic wound healing. Biomater Adv 137:212869. https://doi.org/10.1016/j.bioadv.2022.212869

18. Lu BL, Lin FC, Jiang X et al (2017) One-pot assembly of microfibrillated cellulose reinforced PVA–borax hydrogels with self-healing and pH-responsive properties. ACS Sustain Chem Eng 5(1):948–956. https://doi.org/10.1021/acssuschemeng.6b02279

19. Cho SW, Hwang SY, Oh DX et al (2021) Recent progress in self-healing polymers and hydrogels based on reversible dynamic B–O bonds: boronic/boronate esters, borax, and benzoxaborole. J Mater Chem A 9(26):14630–14655. https://doi.org/10.1039/D1TA02308J

20. Wang HX, Biswas SK, Zhu SL et al (2020) Self-healable electro-conductive hydrogels based on core-shell structured nanocellulose/carbon nanotubes hybrids for use as flexible supercapacitors. Nanomaterials 10(1):112. https://doi.org/10.3390/nano10010112

21. Zhu JY, Tsehaye MT, Wang J et al (2018) A rapid deposition of polydopamine coatings induced by iron (III) chloride/hydrogen peroxide for loose nanofiltration. J Colloid Interface Sci 523:86–97. https://doi.org/10.1016/j.jcis.2018.03.072

22. Guo LR, Panderi I, Yan DD et al (2013) A comparative study of hollow copper sulfide nanoparticles and hollow gold nanospheres on degradability and toxicity. ACS Nano 7(10):8780–8793. https://doi.org/10.1021/nn403202w

23. Ciou TY, Korupalli C, Chou TH et al (2021) Biomimetic nanoreactor for cancer eradication via win–win cooperation between starvation/photo/chemodynamic therapies. ACS Appl Bio Mater 4(7):5650–5660. https://doi.org/10.1021/acsabm.1c00452

24. Liu KY, Zhao DH, Zhao H et al (2024) Mild hyperthermia-assisted chitosan hydrogel with photothermal antibacterial property and CAT-like activity for infected wound healing. Int J Biol Macromol 254:128027. https://doi.org/10.1016/j.ijbiomac.2023.128027

25. Zeng QK, Qian YN, Huang YJ et al (2021) Polydopamine nanoparticle-dotted food gum hydrogel with excellent antibacterial activity and rapid shape adaptability for accelerated bacteria-infected wound healing. Bioact Mater 6(9):2647–2657. https://doi.org/10.1016/j.bioactmat.2021.01.035

26. Lin XL, Fu T, Lei YQ et al (2023) An injectable and light curable hyaluronic acid composite gel with anti-biofilm, anti-inflammatory and pro-healing characteristics for accelerating infected wound healing. Int J Biol Macromol 253:127190. https://doi.org/10.1016/j.ijbiomac.2023.127190

27. Fan PH, Dong Q, Yang JF et al (2023) Flexible dual-functionalized hyaluronic acid hydrogel adhesives formed in situ for rapid hemostasis. Carbohydrate Polymers 313:120854. https://doi.org/10.1016/j.carbpol.2023.120854

28. Yao KT, Li SY, Zheng XZ et al (2024) Superwettable calcium ion exchanged carboxymethyl cellulose powder with self-gelation, tissue adhesion and bioabsorption for effective hemorrhage control. Chem Eng J 481:148770. https://doi.org/10.1016/j.cej.2024.148770

29. Bao XF, Zhao JH, Sun J et al (2018) Polydopamine nanoparticles as efficient scavengers for reactive oxygen species in periodontal disease. ACS Nano 12(9):8882–8892. https://doi.org/10.1021/acsnano.8b04022

30. Xiang T, Guo QR, Jia LH et al (2024) Multifunctional hydrogels for the healing of diabetic wounds. Adv Healthc Mater 13(1): 2301885. https://doi.org/10.1002/adhm.202301885

31. Huang CL, Zhang Z, Fang YF et al (2024) Cost-effective and natural-inspired lotus root/GelMA scaffolds enhanced wound healing via ROS scavenging, angiogenesis and reepithelialization. Int J Biol Macromol 278:134496. https://doi.org/10.1016/j.ijbiomac.2024.134496

32. He JH, Zhang ZX, Yang YT et al (2021) Injectable self-healing adhesive pH-responsive hydrogels accelerate gastric hemostasis and wound healing. Nano-Micro Lett 13(1):80. https://doi.org/10.1007/s40820-020-00585-0

33. Gan DL, Shuai T, Wang X et al (2020) Mussel-inspired redox-active and hydrophilic conductive polymer nanoparticles for adhesive hydrogel bioelectronics. Nano-Micro Lett 12(1):169. https://doi.org/10.1007/s40820-020-00507-0

34. Yi XT, He JM, Wei XJ et al (2023) A polyphenol and E-polylysine functionalized bacterial cellulose/PVA multifunctional hydrogel for wound healing. Int J Biol Macromol 247:125663. https://doi.org/10.1016/j.ijbiomac.2023.125663

35. Qu J, Zhao X, Liang YP et al (2018) Antibacterial adhesive injectable hydrogels with rapid self-healing, extensibility and compressibility as wound dressing for joints skin wound healing. Biomaterials 183:185–199. https://doi.org/10.1016/j.biomaterials.2018.08.044

36. Qi XL, Cai EY, Xiang YJ et al (2023) An immunomodulatory hydrogel by hyperthermia-assisted self-cascade glucose depletion and ROS scavenging for diabetic foot ulcer wound therapeutics. Adv Mater 35(48):2306632. https://doi.org/10.1002/adma.202306632

37. Kim SK, Lee GH, Jeon C et al (2022) Bimetallic nanocatalysts immobilized in nanoporous hydrogels for long-term robust continuous glucose monitoring of smart contact lens. Adv Mater 34(18):2110536. https://doi.org/10.1002/adma.202110536

38. Yang ZX, Ren KX, Chen YH et al (2024) Oxygen-generating hydrogels as oxygenation therapy for accelerated chronic wound healing. Adv Healthc Mater 13(3):2302391. https://doi.org/10.1002/adhm.202302391

39. Huang XS, Liang BM, Zheng ST et al (2024) Microarrow sensor array with enhanced skin adhesion for transdermal continuous monitoring of glucose and reactive oxygen species. Bio-Des Manuf 7(1):14–30. https://doi.org/10.1007/s42242-023-00246-2

40. Chen F, Song T (2022) AuPt bimetallic nanozymes for enhanced glucose catalytic oxidase. Front Chem 10:854516. https://doi.org/10.3389/fchem.2022.854516

41. Cheng S, Pan M, Hu DR et al (2023) Adhesive chitosan-based hydrogel assisted with photothermal antibacterial property to prompt mice infected skin wound healing. Chin Chem Lett 34(12): 108276. https://doi.org/10.1016/j.cclet.2023.108276

42. Baliyan S, Mukherjee R, Priyadarshini A et al (2022) Determination of antioxidants by DPPH radical scavenging activity and quantitative phytochemical analysis of Ficus religiosa. Molecules 27(4):1326. https://doi.org/10.3390/molecules27041326

43. Song WQ, Xu TT, Qian LW et al (2023) Eco-friendly cellulose-based hydrogel functionalized by NIR-responsive multimodal antibacterial polymeric ionic liquid as platform for promoting wound healing. Int J Biol Macromol 244:125353. https://doi.org/10.1016/j.ijbiomac.2023.125353

44. Xu K, Deng SJ, Zhu YB et al (2023) Platelet rich plasma loaded multifunctional hydrogel accelerates diabetic wound healing via regulating the continuously abnormal microenvironments. Adv Healthc Mater 12(28):2301370. https://doi.org/10.1002/adhm.202301370

45. Liang YQ, Li ZL, Huang Y et al (2021) Dual-dynamic-bond cross-linked antibacterial adhesive hydrogel sealants with on-demand removability for post-wound-closure and infected wound healing. ACS Nano 15(4):7078–7093. https://doi.org/10.1021/acsnano.1c00204

46. He XJ, Dai LX, Ye LS et al (2022) A vehicle-free antimicrobial polymer hybrid gold nanoparticle as synergistically therapeutic platforms for Staphylococcus aureus infected wound healing. Adv Sci 9(14):2105223. https://doi.org/10.1002/advs.202105223

47. Zhang SN, Lu QJ, Wang FY et al (2021) Gold-platinum nanodots with high-peroxidase-like activity and photothermal conversion efficiency for antibacterial therapy. ACS Appl Mater Interfaces 13(31):37535–37544. https://doi.org/10.1021/acsami.1c10600

48. Tao BL, Lin CC, Yuan Z et al (2021) Near infrared light-triggered on-demand Cur release from Gel-PDA@Cur composite hydrogel for antibacterial wound healing. Chem Eng J 403:126182. https://doi.org/10.1016/j.cej.2020.126182

49. Xu HT, Li YQ, Song JP et al (2024) Highly active probiotic hydrogels matrixed on bacterial EPS accelerate wound healing via maintaining stable skin microbiota and reducing inflammation. Bioact Mater 35:31–44. https://doi.org/10.1016/j.bioactmat.2024.01.011

50. Guo CA, Zhang J, Feng XJ et al (2022) Polyhexamethylene biguanide chemically modified cotton with desirable hemostatic, inflammation-reducing, intrinsic antibacterial property for infected wound healing. Chin Chem Lett 33(6):2975–2981. https://doi.org/10.1016/j.cclet.2021.12.086

51. Zhao XQ, Shi YC, Niu SF et al (2024) Enhancing wound healing and bactericidal efficacy: a hydrogel membrane of bacterial cellulose and sanxan gel for accelerating the healing of infected wounds. Adv Healthc Mater 13(8):2303216. https://doi.org/10.1002/adhm.202303216

52. He YM, Liu KY, Zhang C et al (2022) Facile preparation of PVA hydrogels with adhesive, self-healing, antimicrobial, and on-demand removable capabilities for rapid hemostasis. Biomater Sci 10(19):5620–5633. https://doi.org/10.1039/d2bm00891b

53. Rajakumari R, Volova T, Oluwafemi OS et al (2020) Nano formulated proanthocyanidins as an effective wound healing component. Mater Sci Eng C 106:110056. https://doi.org/10.1016/j.msec.2019.110056

54. Osman A, Lin EH, Hwang DS (2023) A sticky carbohydrate meets a mussel adhesive: catechol-conjugated levan for hemostatic and wound healing applications. Carbohydrate Polymers 299:120172. https://doi.org/10.1016/j.carbpol.2022.120172

55. Liu KY, Zhang C, Chang R et al (2023) Ultra-stretchable, tissue-adhesive, shape-adaptive, self-healing, on-demand removable hydrogel dressings with multiple functions for infected wound healing in regions of high mobility. Acta Biomater 166:224–240. https://doi.org/10.1016/j.actbio.2023.05.025

56. Tan WW, Long T, Wan YZ et al (2023) Dual-drug loaded polysaccharide-based self-healing hydrogels with multifunctionality for promoting diabetic wound healing. Carbohydrate Polymers 312:120824. https://doi.org/10.1016/j.carbpol.2023.120824

57. Qian YN, Zheng YJ, Jin J et al (2022) Immunoregulation in diabetic wound repair with a photoenhanced glycyrrhizic acid hydrogel scaffold. Adv Mater 34(29):2200521. https://doi.org/10.1002/adma.202200521

58. Zhang KB, Yang C, Cheng CX et al (2022) Bioactive injectable hydrogel dressings for bacteria-infected diabetic wound healing: a “pull-push” approach. ACS Appl Mater Interfaces 14(23): 26404–26417. https://doi.org/10.1021/acsami.2c04300

59. Zhao XD, Pei DD, Yang YX et al (2021) Green tea derivative driven smart hydrogels with desired functions for chronic diabetic wound treatment. Adv Funct Mater 31(18):2009442. https://doi.org/10.1002/adfm.202009442

60. Liu J, Qu MY, Wang CR et al (2022) A dual-cross-linked hydrogel patch for promoting diabetic wound healing. Small 18(17): 2106172. https://doi.org/10.1002/smll.202106172

61. Navarro-González JF, Mora-Fernández C (2008) The role of inflammatory cytokines in diabetic nephropathy. J Am Soc Nephrol 19(3): 433–442. https://doi.org/10.1681/ASN.2007091048

62. Matoori S, Veves A, Mooney DJ (2021) Advanced bandages for diabetic wound healing. Sci Transl Med 13(585):eabe4839. https://doi.org/10.1126/scitranslmed.abe4839

63. Jiang T, Liu SJ, Wu ZH et al (2022) ADSC-exo@MMP-PEG smart hydrogel promotes diabetic wound healing by optimizing cellular functions and relieving oxidative stress. Mater Today Bio 16:100365. https://doi.org/10.1016/j.mtbio.2022.100365

64. Ren Y, Aierken A, Zhao L et al (2022) hUC-MSCs lyophilized powder loaded polysaccharide ulvan driven functional hydrogel for chronic diabetic wound healing. Carbohydrate Polymers 288: 119404. https://doi.org/10.1016/j.carbpol.2022.119404
